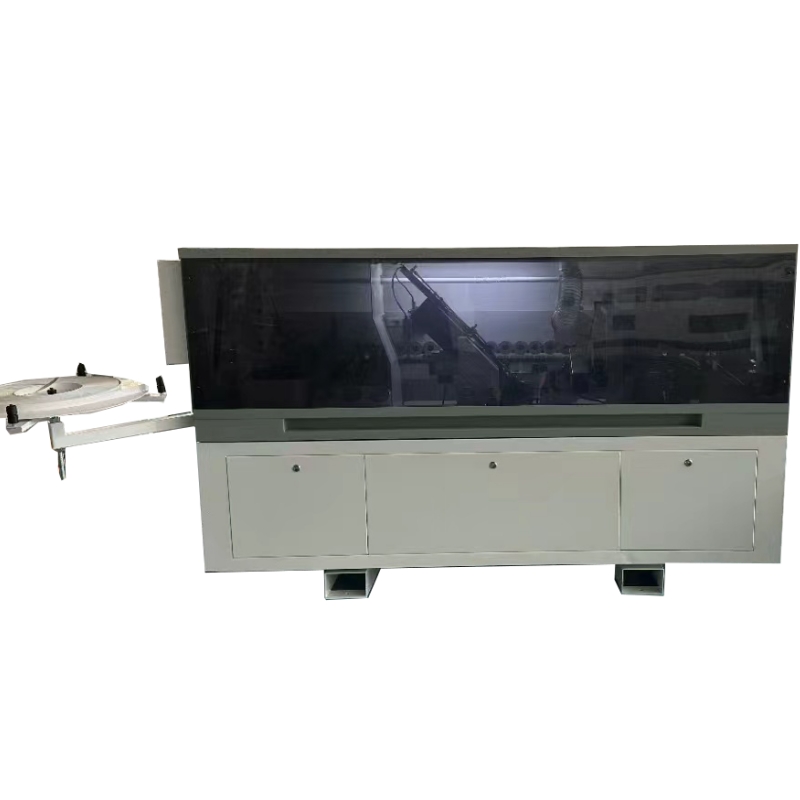

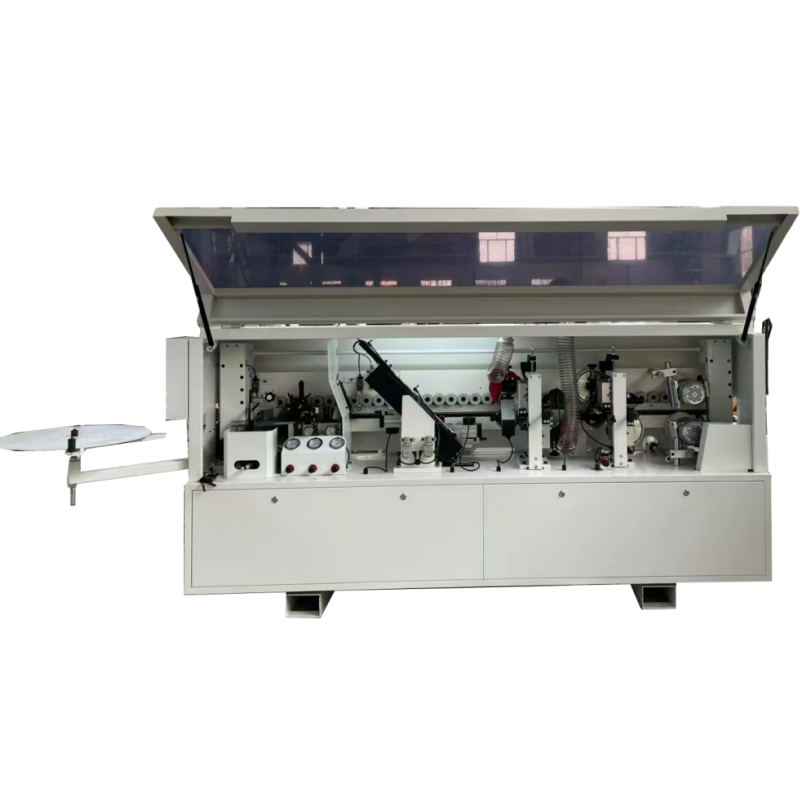

Edge Banding Machine HF505

Edge Banding Machine HF505

The machine is suitable for such plates: MDF, block board, solid wood board, particleboard, polymer door plates, plywood etc,straight line edging and trimming.

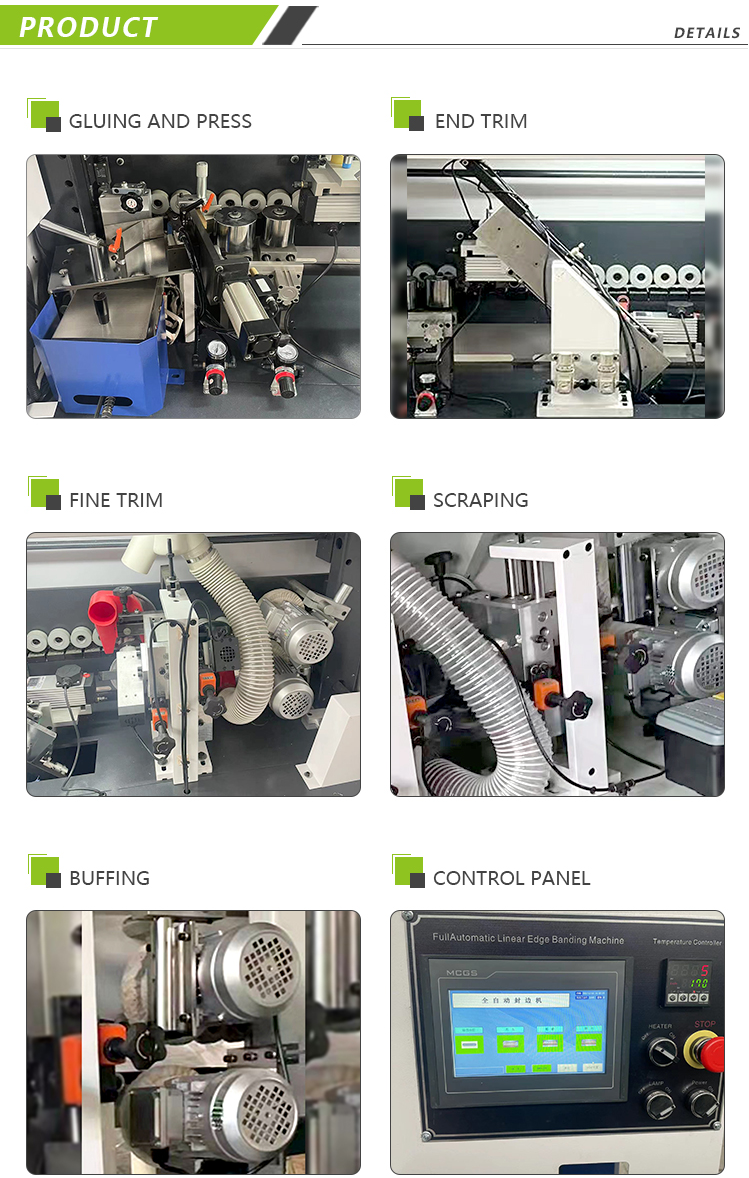

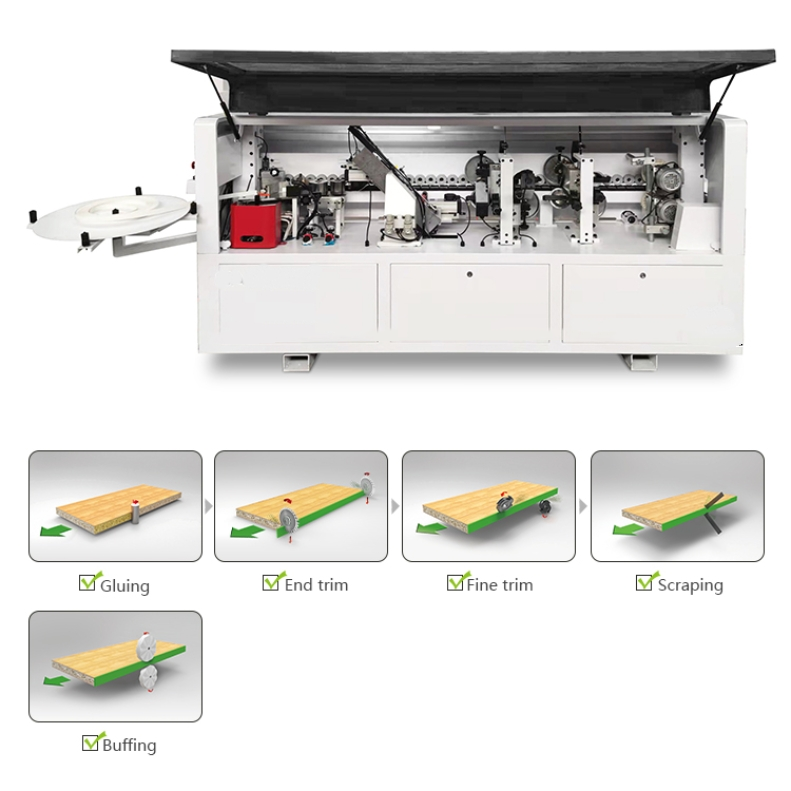

Function: gluing,edge cutting,end trimming, rough trimming, fine trimming, scraping, buffing.

Edging smoothly and edging line is straight. The machine is stable, reliable and durable, with favorable price. It is especially suitable for large and medium-sized furniture manufacturers.

Parameters	Standard Specifications
Brand Name	HonorFuture
Modal	HF505
Motor Power	7.5KW
Overall Size	2800*750*1500mm
Feed Speed	15m/min
Panel Thickness	10-55mm
Edge Thickness	0.4-3mm
Panel Width	≥80mm
Working Press	6KG
Weight	800KG
Function	Gluing,End Trimming,Fine Trimming,Scraping,Buffing
Online Support	Provided
Warranty	2 Year
